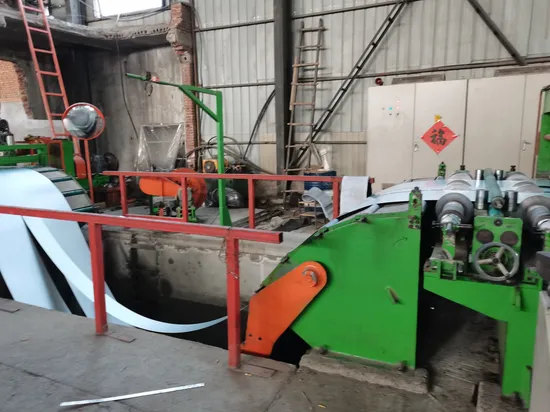

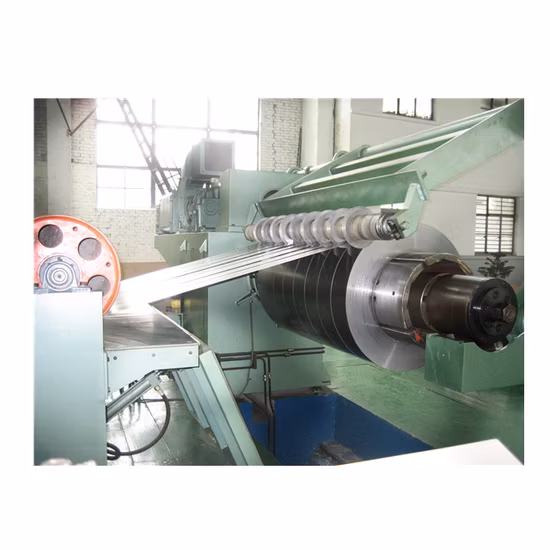

Metal Steel Stainless GI PPGI Slitting Line Shearing Slitter Machine

Basic Info.

Model NO.	TG-HS
Advantage	Use Widely
Condition	New
Coil Width	100 - 2000 mm
Coil Thickness	0.2 - 12.0 mm
Transport Package	Wood Box
Trademark	TGMCO
Origin	China
Production Capacity	50sets/Year

Product Description

Welcome to Taicang Global Machinery Co., Ltdhttps://global-machinery1.en.made-in-china.com/At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!Summary
A Slitting Line is used to break mother coils down into baby coils of a specific width and or weight. A Slitting Line will uncoil a mother coil and slit it to a specified width(s). The slit coils sometimes referred to as strips are then recoiled. The finished slit coils produced by Slitting Line are used in a wide variety of applications such as roll forming, stamping operations, and pipe making. When considering a Slitting Line and the proper line configuration for your application, there are several variables you should consider: the thickness of material, the type of material, the weight of the coils to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.Technical process:
1: Coil saddle2: Hydraulic coil car: loading capacity 20 tons3: Hydraulic cantilever uncoiler 4: Guiding plate for feeding device5: Pinch and pre-leveler6: Hydraulic loop bridge7: Guiding device8: Slitter9: Scrap winder and tail pressing device10: Loop bridge11: Hydraulic pre-separator12: Hydraulic recoiling machine13: Hydraulic coil car14: Electric Control System15: Hydraulic system
High Speed Slitting Line

Model	0.2-1.8×500	0.3-2.0×1250(1600)	1.0-6.0×1600	3.0-12.0×2000
Material	δs≤230N/mm2, Cold-rolled Coil, Hot-rolled Coil, Galvanized Coil, Stainless Coil
Coil Thickness	0.2~1.8mm	0.3~2.0mm	1.0~6.0mm	3.0~12.0mm
Coil Width	100~500mm	800~1250 (1600)mm	800~1600mm	1000~2000mm
Coil Weight	≤5 tons	≤20 or 25 tons	≤25 tons	≤30 tons
Coil ID	φ508m`m	φ508mm	φ508 & 610 & 760mm	φ610 & 760 & 820mm
Coil OD	≤φ1600mm	≤φ2000mm	≤φ2000mm	≤φ2000mm
Strip Width	≥25mm	≥30mm	≥50mm	≥80mm
No. of Strip	5~15	8~20	5~15	4~15
Slitting Accuracy	±0.1mm	±0.15mm	±0.25mm	±0.3mm
Line Speed	0~150m/min	0~150m/min	0~150m/min	0~30m/min
Electrical Control	PLC	PLC	PLC	PLC

Nonferrous metal high speed Slitting line

Model	0.2-1.5×600		0.3-3.0×1250(1600)
Coil material	Aluminum coil, Copper coil
Coil thickness	0.2~1.5mm	0.3~3.0mm
Coil width	100~600mm	300~1250(1600)mm
Coil weight	≤5T	≤20T
Coil ID	φ508mm	φ508mm
Coil OD	≤φ1500mm	≤φ1800mm
Strip width	≥25mm	≥25mm
Number of strip	5~15	8~20
Slitting accuracy	≤±0.05mm	≤±0.05mm
Line speed	0~150m/min	0~150m/min
Electrical Control System	PLC	PLC

Certificate

Main Customers

FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest airport to your company?
A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
A: Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements
